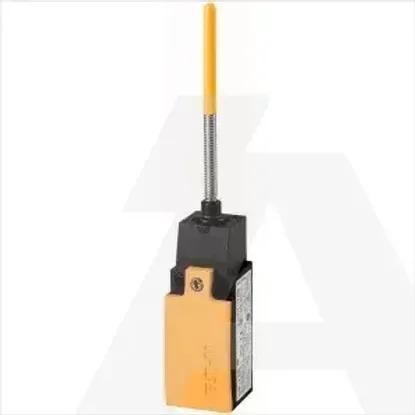

LS-S11S/S
Code: 1063756
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 24 V6A
Length of sensor33.5mm
Rated operation current Ie at AC-15, 125 V6A
Switching function latchingNo
Width sensor31mm
Height of sensor61mm
Rated operation current Ie at AC-15, 230 V6A
Diameter sensor0mm
Rated operation current Ie at DC-13, 125 V0.8A
Rated operation current Ie at DC-13, 230 V0.3A
Rated operation current Ie at DC-13, 24 V3A
Number of safety auxiliary contacts1
Forced openingNo
Number of contacts as normally closed contact1
Output electronicNo
Type of interface for safety communicationNone
Number of contacts as normally open contact1
Construction type housingCuboid
Type of interfaceNone
Number of contacts as change-over contact0
Material housingPlastic
Type of control elementSpring-rod
Alignment of the control elementRoller cam crossed
Coating housingOther
With status indicationNo
Suitable for safety functionsYes
Explosion safety category for gasNone
Ambient temperature during operating-25 - 70°C
Explosion safety category for dustNone
Degree of protection (NEMA)Other
Type of electric connectionCable entry metrical
Degree of protection (IP)IP66/IP67
