Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Overload release current setting400 - 800A
Rated voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
With switched-off indicatorNo
Motor drive integratedNo
Adjustment range undelayed short-circuit release1600 - 9600A
Adjustment range short-term delayed short-circuit release0 - 0A
Integrated earth fault protectionNo
Type of control elementRocker lever
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitFront side
DIN rail (top hat rail) mounting optionalNo
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Rated permanent current Iu800A
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

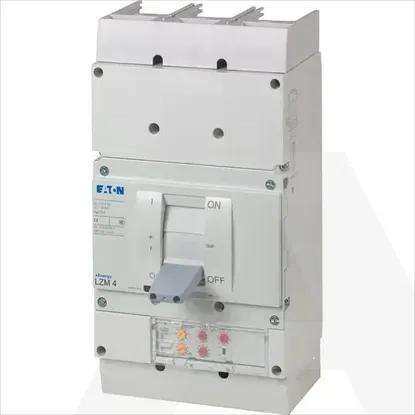

LZMN4-AE800-I
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
With integrated under voltage release
Degree of protection (IP)
IP20
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Overload release current setting
400 .. 800A
Rated voltage
690 .. 690V
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Screw connection
With switched-off indicator
Motor drive integrated
Adjustment range undelayed short-circuit release
1600 .. 9600A
Adjustment range short-term delayed short-circuit release
0 .. 0A
Integrated earth fault protection
Type of control element
Rocker lever
Motor drive optional
Suitable for DIN rail (top hat rail) mounting
Position of connection for main current circuit
Front side
DIN rail (top hat rail) mounting optional
Device construction
Built-in device fixed built-in technique
Complete device with protection unit
Rated permanent current Iu
800A
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
