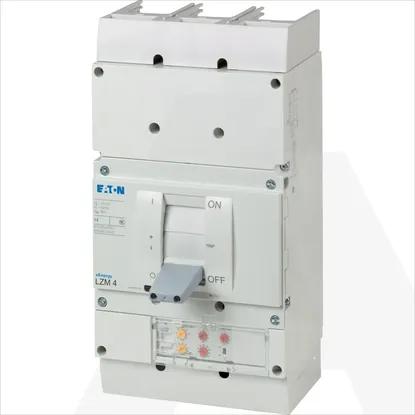

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of poles3
Position of connection for main current circuitFront side
Overload release current setting800 - 1600A
Rated voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu1600A
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
With switched-off indicatorNo
Type of control elementRocker lever
Adjustment range short-term delayed short-circuit release0 - 0A
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release3200 - 19200A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Complete device with protection unitYes
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
LZMN4-AE1600-I
