Details

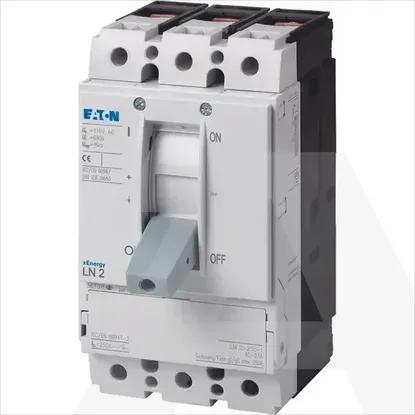

- •Switch disconnector, 3pole, In=250A
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Width105mm
Height185mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Depth142mm
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Rated operating voltage690 - 690V
Number of switches-
InterlockableYes
Conditioned rated short-circuit current Iq100kA
Rated operation power at AC-23, 400 V132kW
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Colour control elementGrey
Suitable for intermediate mountingYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Type of control elementRocker lever
Version as reversing switchNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Motor drive optionalYes
Voltage release optionalYes
Rated short-time withstand current lcw3.5kA
Rated permanent current at AC-21, 400 V0A
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Switching power at 400 V0kW
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Rated permanent current Iu250A
Number of poles3
Max. rated operation voltage Ue AC400V
