Details
- •Low-voltage control systems

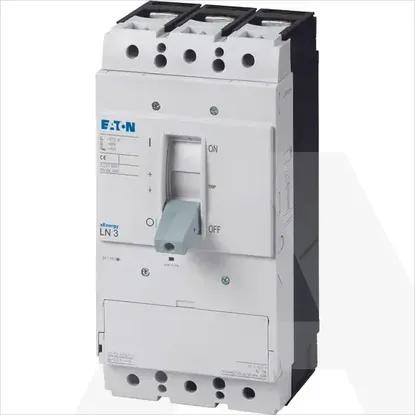

- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Depth166mm
Width140mm
Height275mm
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
InterlockableYes
Degree of protection (IP), front sideIP20
Rated operation power at AC-3, 400 V0kW
Conditioned rated short-circuit current Iq100kA
Number of switches-
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationYes
Type of control elementRocker lever
Version as main switchYes
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V200kW
Version as safety switchNo
Rated short-time withstand current lcw12kA
Colour control elementGrey
Version as maintenance-/service switchYes
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V0A
Voltage release optionalYes
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V0kW
Motor drive optionalYes
Version as reversing switchNo
Rated permanent current Iu400A
Number of poles3
Max. rated operation voltage Ue AC400V
