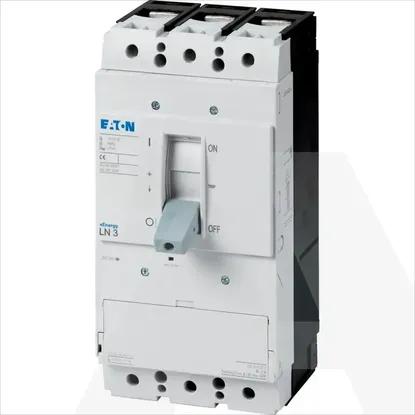

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated permanent current Iu630A
Number of auxiliary contacts as change-over contact0
Number of poles3
Height275mm
Conditioned rated short-circuit current Iq100kA
Rated operating voltage690 - 690V
Depth166mm
Number of switches-
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Width140mm
Number of auxiliary contacts as normally open contact0
InterlockableYes
Type of control elementRocker lever
Version as safety switchNo
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw12kA
Rated operation power at AC-23, 400 V315kW
Suitable for floor mountingYes
Suitable for distribution board installationYes
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V0A
Suitable for intermediate mountingYes
Colour control elementGrey
Motor drive optionalYes
Suitable for front mounting 4-holeNo
Switching power at 400 V0kW
Version as reversing switchNo
Voltage release optionalYes
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC400V
Device constructionBuilt-in device fixed built-in technique
