Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as change-over contact0
Depth401mm
Motor drive integratedNo
InterlockableYes
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq100kA
Rated operation power at AC-3, 400 V0kW
Number of poles3
Rated permanent current Iu1600A
Width210mm
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP20
Number of switches-
Height207mm
Number of auxiliary contacts as normally closed contact0
Type of control elementRocker lever
Version as emergency stop installationYes
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Switching power at 400 V0kW
Version as safety switchNo
Rated permanent current at AC-23, 400 V-A
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Rated short-time withstand current lcw25kA
Suitable for front mounting centreNo
Colour control elementGrey
Rated operation power at AC-23, 400 V800kW
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Suitable for floor mountingYes
Voltage release optionalYes
Suitable for intermediate mountingYes
Suitable for distribution board installationYes
Motor drive optionalYes
Max. rated operation voltage Ue AC400V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

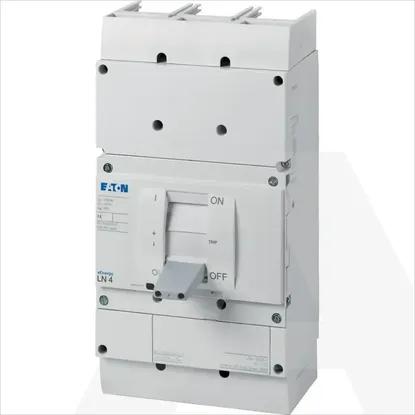

LN4-1600-I
