Details
- •Low-voltage industrial components

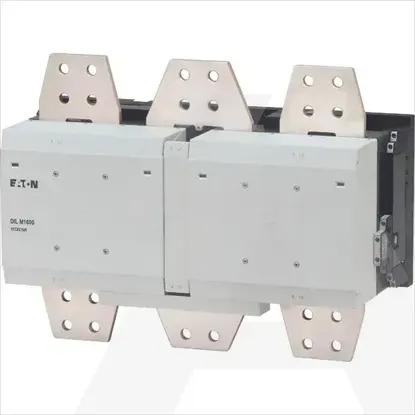

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width515mm
Voltage type for actuatingAC/DC
Modular versionNo
Rated operation power at AC-4, 400 V750kW
Rated control supply voltage Us at AC 60HZ230 - 250V
Height252mm
Operating voltage at AC 60 Hz230 - 250V
Type of electrical connection of main circuitRail connection
Number of normally open contacts as main contact3
Depth392mm
Rated control supply voltage Us at DC230 - 250V
Rated operation power NEMA895kW
Rated operation current Ie at AC-1, 400 V2200A
Rated operation current Ie at AC-4, 400 V1280A
Operating voltage at AC 50 Hz230 - 250V
Number of normally closed contacts as main contact0
Rated operation power at AC-3, 400 V900kW
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V1600A
Rated control supply voltage Us at AC 50HZ230 - 250V
