Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact1
Height85mm
Depth97mm
Voltage type for actuatingDC
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electrical connection of main circuitScrew connection
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Rated operation power at AC-3, 400 V7.5kW
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation current Ie at AC-1, 400 V32A
Width58mm
Modular versionNo
Rated operation current Ie at AC-4, 400 V15A
Rated operation current Ie at AC-3, 400 V18A
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at DC24 - 27V
Rated operation power at AC-4, 400 V7kW
Rated operation power NEMA11kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

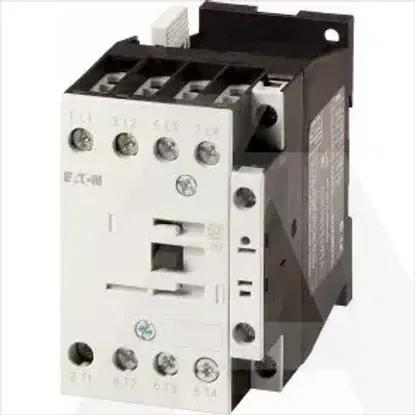

DILMP32-10(RDC24)
