Details
- •Low-voltage industrial components

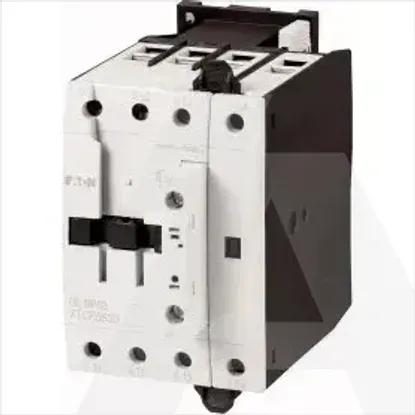

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width74mm
Number of normally closed contacts as main contact0
Modular versionNo
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of normally open contacts as main contact4
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V40A
Rated operation power at AC-3, 400 V18.5kW
Depth132mm
Rated operation current Ie at AC-1, 400 V63A
Height115mm
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-4, 400 V25A
Operating voltage at AC 50 Hz230 - 690V
Operating voltage at AC 60 Hz230 - 690V
Rated control supply voltage Us at DC24 - 27V
Voltage type for actuatingDC
Rated operation power at AC-4, 400 V12kW
Rated operation power NEMA22kW
Type of electrical connection of main circuitScrew connection
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILMP63(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
74mm
Number of normally closed contacts as main contact
0
Modular version
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of normally open contacts as main contact
4
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
40A
Rated operation power at AC-3, 400 V
18.5kW
Depth
132mm
Rated operation current Ie at AC-1, 400 V
63A
Height
115mm
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-4, 400 V
25A
Operating voltage at AC 50 Hz
230 .. 690V
Operating voltage at AC 60 Hz
230 .. 690V
Rated control supply voltage Us at DC
24 .. 27V
Voltage type for actuating
DC
Rated operation power at AC-4, 400 V
12kW
Rated operation power NEMA
22kW
Type of electrical connection of main circuit
Screw connection
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
