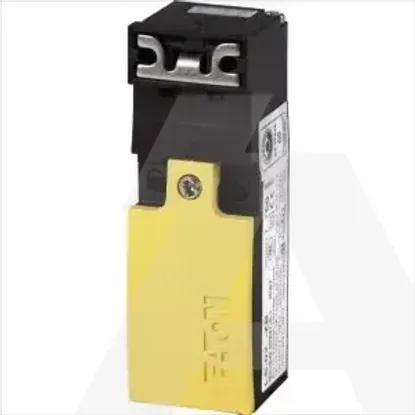

Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-15, 230 V6A
Switching functionSlow-action switch
Rated operation current Ie at DC-13, 230 V0.3A
Coating housingOther
With status indicationNo
Explosion safety category for dustNone
Explosion safety category for gasNone
Type of electric connectionCable entry metrical
Type of interfaceNone
Number of safety auxiliary contacts0
Rated operation current Ie at DC-13, 125 V0.8A
Width sensor30mm
Construction type housingCuboid
Output electronicNo
Suitable for safety functionsYes
Rated operation current Ie at DC-13, 24 V3A
Material housingPlastic
Rated operation current Ie at AC-15, 125 V6A
Forced openingYes
Diameter sensor0mm
Rated operation current Ie at AC-15, 24 V10A
Type of interface for safety communicationNone
Type of control elementOther
Degree of protection (IP)IP66
Length of sensor33.35mm
Switching function latchingNo
Height of sensor96mm
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
Alignment of the control elementOther
Degree of protection (NEMA)Other
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
LS-11-ZB
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation current Ie at AC-15, 230 V
6A
Switching function
Slow-action switch
Rated operation current Ie at DC-13, 230 V
0.3A
Coating housing
Other
With status indication
Explosion safety category for dust
None
Explosion safety category for gas
None
Type of electric connection
Cable entry metrical
Type of interface
None
Number of safety auxiliary contacts
0
Rated operation current Ie at DC-13, 125 V
0.8A
Width sensor
30mm
Construction type housing
Cuboid
Output electronic
Suitable for safety functions
Rated operation current Ie at DC-13, 24 V
3A
Material housing
Plastic
Rated operation current Ie at AC-15, 125 V
6A
Forced opening
Diameter sensor
0mm
Rated operation current Ie at AC-15, 24 V
10A
Type of interface for safety communication
None
Type of control element
Other
Degree of protection (IP)
IP66
Length of sensor
33.35mm
Switching function latching
Height of sensor
96mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Ambient temperature during operating
-25 .. 70°C
Alignment of the control element
Other
Degree of protection (NEMA)
Other
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
