Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Type of control elementOther
With status indicationNo
Suitable for safety functionsYes
Switching functionSlow-action switch
Rated operation current Ie at AC-15, 230 V6A
Explosion safety category for dustNone
Explosion safety category for gasNone
Forced openingYes
Type of electric connectionOther
Type of interface for safety communicationNone
Construction type housingCuboid
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.3A
Coating housingOther
Degree of protection (IP)IP65
Number of safety auxiliary contacts2
Alignment of the control elementOther
Switching function latchingNo
Type of interfaceNone
Rated operation current Ie at AC-15, 125 V6A
Output electronicNo
Number of contacts as normally closed contact2
Number of contacts as change-over contact0
Rated operation current Ie at DC-13, 24 V3A
Degree of protection (NEMA)13
Diameter sensor0mm
Width sensor30mm
Ambient temperature during operating25 - 70°C
Height of sensor96mm
Number of contacts as normally open contact0
Rated operation current Ie at DC-13, 125 V0.8A
Rated operation current Ie at AC-15, 24 V10A
Length of sensor33.35mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

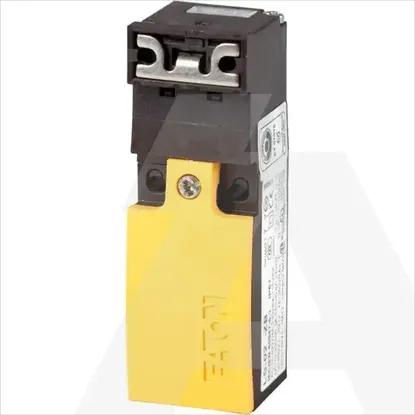

LS-S02-ZB/X
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Type of control element
Other
With status indication
Suitable for safety functions
Switching function
Slow-action switch
Rated operation current Ie at AC-15, 230 V
6A
Explosion safety category for dust
None
Explosion safety category for gas
None
Forced opening
Type of electric connection
Other
Type of interface for safety communication
None
Construction type housing
Cuboid
Material housing
Plastic
Rated operation current Ie at DC-13, 230 V
0.3A
Coating housing
Other
Degree of protection (IP)
IP65
Number of safety auxiliary contacts
2
Alignment of the control element
Other
Switching function latching
Type of interface
None
Rated operation current Ie at AC-15, 125 V
6A
Output electronic
Number of contacts as normally closed contact
2
Number of contacts as change-over contact
0
Rated operation current Ie at DC-13, 24 V
3A
Degree of protection (NEMA)
13
Diameter sensor
0mm
Width sensor
30mm
Ambient temperature during operating
25 .. 70°C
Height of sensor
96mm
Number of contacts as normally open contact
0
Rated operation current Ie at DC-13, 125 V
0.8A
Rated operation current Ie at AC-15, 24 V
10A
Length of sensor
33.35mm
