Details

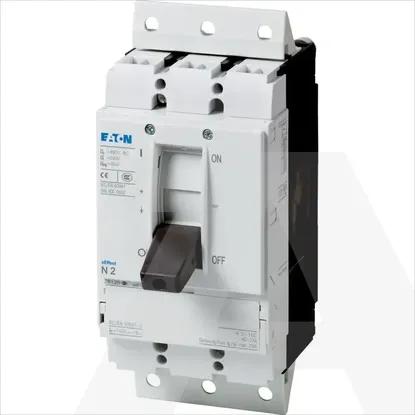

- •Switch disconnectors, 3pole, can be tripped r
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Height245mm
Depth180mm
Rated operation power at AC-3, 400 V0kW
Width105mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Degree of protection (IP), front sideIP20
InterlockableYes
Conditioned rated short-circuit current Iq0kA
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Type of control elementRocker lever
Suitable for floor mountingYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for distribution board installationYes
Colour control elementBlack
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V90kW
Rated short-time withstand current lcw3.5kA
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Switching power at 400 V0kW
With pre-assembled cablingNo
Motor drive optionalYes
Voltage release optionalYes
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V0A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V0A
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC690V
