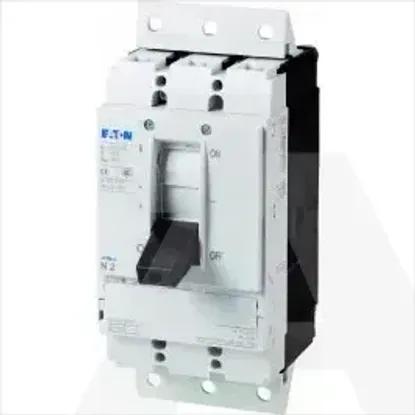

N2-200-SVE
Code: 1065207
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu200A
Number of switches1
Version as safety switchNo
Version as emergency stop installationYes
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V110kW
Version as main switchYes
Rated permanent current at AC-23, 400 V0A
Version as maintenance-/service switchYes
Number of poles3
Rated permanent current at AC-21, 400 V0A
Conditioned rated short-circuit current Iq0kA
Voltage release optionalYes
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device plug-in technique
Motor drive optionalYes
Suitable for front mounting centreNo
Suitable for floor mountingYes
Rated short-time withstand current lcw3.5kA
Switching power at 400 V0kW
Rated operation power at AC-3, 400 V0kW
Suitable for distribution board installationYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Type of control elementRocker lever
Colour control elementBlack
Suitable for intermediate mountingYes
Type of electrical connection of main circuitScrew connection
InterlockableYes
Degree of protection (IP), front sideIP20
Height245mm
With pre-assembled cablingNo
Width105mm
Depth180mm
