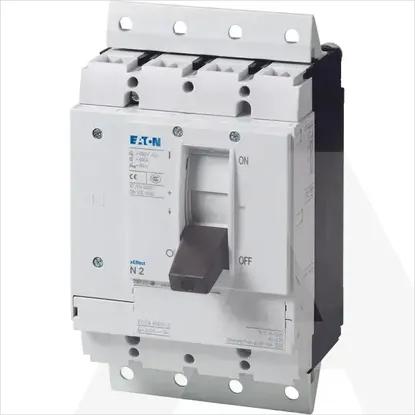

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Suitable for floor mountingYes
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Rated short-time withstand current lcw3.5kA
Motor drive integratedNo
Rated permanent current Iu250A
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
Colour control elementBlack
Version as emergency stop installationYes
Rated operation power at AC-23, 400 V132kW
Width140mm
Height245mm
Number of switches1
Conditioned rated short-circuit current Iq0kA
Depth180mm
Number of poles4
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Type of control elementRocker lever
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Rated permanent current at AC-23, 400 V0A
Suitable for distribution board installationYes
Voltage release optionalYes
With pre-assembled cablingNo
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V0kW
Motor drive optionalYes
Max. rated operation voltage Ue AC690V
