Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height346mm
Width230mm
Depth260mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Number of switches1
Rated permanent current Iu630A
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
InterlockableYes
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP20
Number of poles4
Motor drive integratedNo
Type of control elementRocker lever
Conditioned rated short-circuit current Iq0kA
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Suitable for intermediate mountingYes
Suitable for distribution board installationYes
Suitable for floor mountingYes
Colour control elementBlack
Suitable for front mounting centreNo
Motor drive optionalYes
Rated operation power at AC-23, 400 V315kW
Rated short-time withstand current lcw12kA
Version as safety switchNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V0A
Device constructionBuilt-in device slide-in technique (withdrawable)
Version as reversing switchNo
Voltage release optionalYes
Rated permanent current at AC-23, 400 V0A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

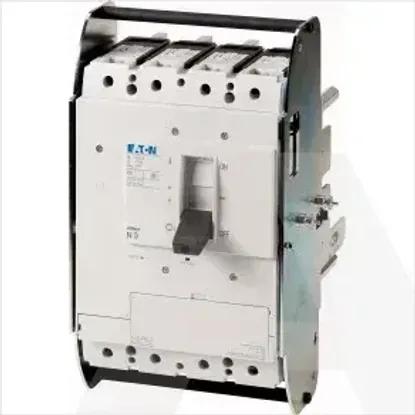

N3-4-630-AVE
