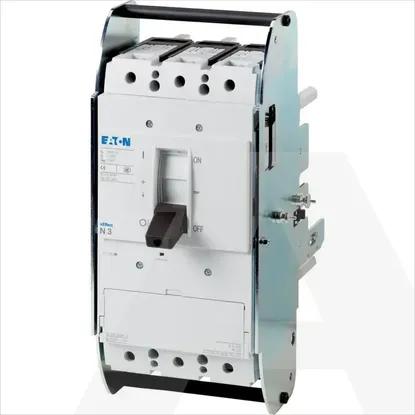

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width185mm
Rated permanent current Iu630A
Rated operation power at AC-3, 400 V0kW
Depth260mm
Number of auxiliary contacts as normally open contact0
Height346mm
Number of poles3
Conditioned rated short-circuit current Iq0kA
Version as main switchYes
Rated short-time withstand current lcw12kA
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Rated operating voltage690 - 690V
Type of control elementRocker lever
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
Colour control elementBlack
Number of switches1
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V315kW
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Version as emergency stop installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Switching power at 400 V0kW
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V0A
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Motor drive optionalYes
Rated permanent current at AC-21, 400 V0A
Suitable for intermediate mountingYes
Voltage release optionalYes
With pre-assembled cablingNo
