Details
- •Low-voltage industrial components

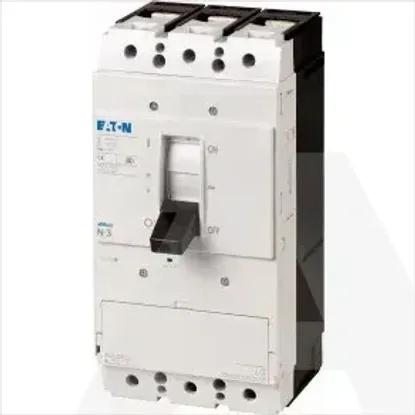

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq0kA
Degree of protection (IP), front sideIP20
Number of switches1
Number of poles3
Rated permanent current Iu630A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
InterlockableYes
Motor drive integratedNo
Version as emergency stop installationYes
Type of electrical connection of main circuitFrame clamp
Version as safety switchNo
Version as maintenance-/service switchYes
Type of control elementRocker lever
Rated short-time withstand current lcw12kA
Suitable for floor mountingYes
Version as main switchYes
Colour control elementBlack
Rated operation power at AC-23, 400 V315kW
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingYes
Voltage release optionalYes
Motor drive optionalYes
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for distribution board installationYes
Switching power at 400 V0kW
Rated permanent current at AC-21, 400 V0A
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V0A
