Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
With integrated under voltage releaseNo
Adjustment range undelayed short-circuit release1600 - 2800A
Phase failure sensitiveNo
Rated operation power at AC-3, 230 V55kW
Rated operating voltage690 - 690V
Device constructionBuilt-in device plug-in technique
Rated operation power at AC-3, 400 V110kW
With thermal protectionYes
Height245mm
Degree of protection (IP)IP20
Type of electrical connection of main circuitScrew connection
Width105mm
Switch off techniqueThermomagnetic
With integrated auxiliary switchNo
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
Rated permanent current Iu200A
Type of control elementRocker lever
Depth180mm
Overload release current setting160 - 200A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

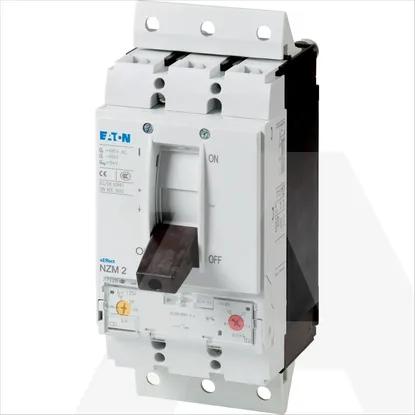

NZMH2-M200-SVE
