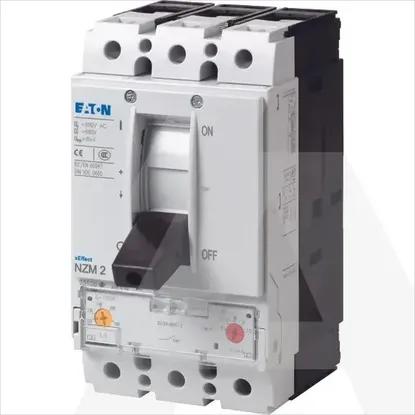

NZMN2-A160-BT
Code: 1065414
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu160A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Overload release current setting125 - 160A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release960 - 1600A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitFrame clamp
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Number of poles3
With switched-off indicatorNo
Type of control elementRocker lever
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP20
Motor drive integratedNo
DIN rail (top hat rail) mounting optionalYes
Position of connection for main current circuitFront side
