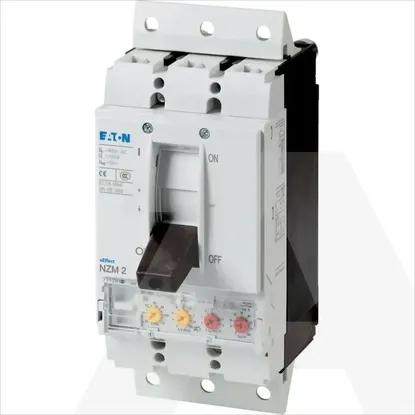

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
With integrated under voltage releaseNo
Type of control elementRocker lever
Degree of protection (IP)IP20
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles3
Motor drive integratedNo
Overload release current setting125 - 250A
Rated permanent current Iu250A
With switched-off indicatorNo
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Position of connection for main current circuitFront side
Adjustment range short-term delayed short-circuit release250 - 2500A
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device plug-in technique
Adjustment range undelayed short-circuit release3000 - 3000A
Motor drive optionalYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Integrated earth fault protectionNo
Complete device with protection unitYes
Suitable for DIN rail (top hat rail) mountingNo
