Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of poles3
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Motor drive optionalNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Rated operation power at AC-3, 400 V13kW
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V15kW
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.64kA
Suitable for front mounting 4-holeYes
Version as emergency stop installationYes
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
InterlockableYes
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V32A
Colour control elementRed
Version as main switchYes
Version as safety switchNo
Switching power at 400 V15kW
Number of switches1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

P1-32/E/SVB

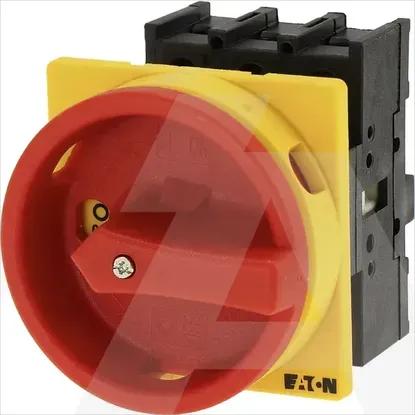

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of poles

3

Type of control element

Door coupling rotary drive

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Rated permanent current Iu

32A

Motor drive optional

Motor drive integrated

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device fixed built-in technique

Degree of protection (IP), front side

IP65

Degree of protection (NEMA)

12

Suitable for floor mounting

Suitable for intermediate mounting

Suitable for distribution board installation

Rated operation power at AC-3, 400 V

13kW

Max. rated operation voltage Ue AC

690V

Conditioned rated short-circuit current Iq

80kA

Rated operation power at AC-23, 400 V

15kW

Rated operating voltage

690 .. 690V

Rated short-time withstand current lcw

0.64kA

Suitable for front mounting 4-hole

Version as emergency stop installation

Suitable for front mounting centre

Version as reversing switch

Rated permanent current at AC-21, 400 V

32A

Voltage release optional

Interlockable

Version as maintenance-/service switch

Rated permanent current at AC-23, 400 V

32A

Colour control element

Red

Version as main switch

Version as safety switch

Switching power at 400 V

15kW

Number of switches

1
