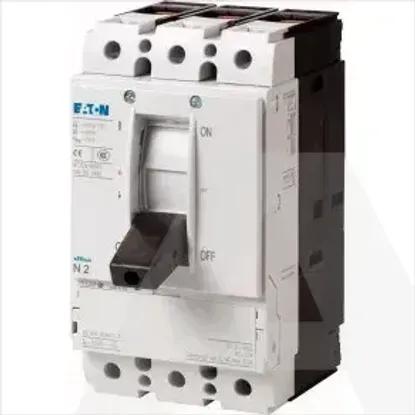

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Version as maintenance-/service switchYes
InterlockableYes
Version as safety switchNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq0kA
Number of switches1
Colour control elementBlack
Depth149mm
Version as emergency stop installationYes
Number of poles3
Width105mm
Type of electrical connection of main circuitFrame clamp
Rated short-time withstand current lcw3.5kA
Degree of protection (IP), front sideIP20
Height184mm
Number of auxiliary contacts as normally open contact0
Type of control elementRocker lever
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V110kW
Rated permanent current Iu200A
Rated operation power at AC-3, 400 V0kW
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V0A
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Suitable for distribution board installationYes
Switching power at 400 V0kW
Motor drive optionalNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V0A
With pre-assembled cablingNo
