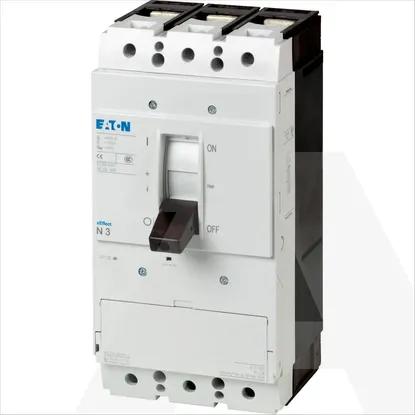

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationYes
Height275mm
Width140mm
Version as safety switchNo
Type of control elementRocker lever
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Version as main switchYes
Rated operation power at AC-23, 400 V200kW
Conditioned rated short-circuit current Iq0kA
InterlockableYes
Rated operating voltage690 - 690V
Type of electrical connection of main circuitFrame clamp
Rated permanent current Iu400A
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of poles3
Depth166mm
Motor drive integratedNo
Rated operation power at AC-3, 400 V0kW
Number of switches1
Switching power at 400 V0kW
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for intermediate mountingYes
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V0A
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V0A
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Rated short-time withstand current lcw12kA
Colour control elementBlack
