Details
- •Cable carrying systems
- •Mesh cable tray
- •1 M
- •OBO
Technical specifications
ModelIntegrated connector
Weight1.02kg/m
Surface protectionHot-dip galvanized
Type of connectorSnapper mounting
Possible support spacing1 - 2.5m
Safe working load according to IEC 61537 with support spacing 0.5 m-N/m
Integrated partitionNone
Height55mm
Working length-mm
Operating temperature- - -°C
Useful cross section8700mm²
Profile shapeU-shape
Load test type according to IEC 61537Type II
MaterialSteel
Length3000mm
Diameter longitudinal wire3.9mm
RAL-number-
Suitable for circuit integrityYes
Width200mm
Safe working load according to IEC 61537 with support spacing 1.5 m200N/m
Safe working load according to IEC 61537 with support spacing 2.0 m100N/m
Safe working load according to IEC 61537 with support spacing 1.0 m350N/m
Diameter transverse wire3.9mm
Safe working load according to IEC 61537 with support spacing 2.5 m100N/m
Safe working load according to IEC 61537 with support spacing 4.0 m-N/m
Safe working load according to IEC 61537 with support spacing 5.0 m-N/m
Safe working load according to IEC 61537 with support spacing 8.0 m-N/m
Safe working load according to IEC 61537 with support spacing 6.0 m-N/m
Safe working load according to IEC 61537 with support spacing 12.0 m-N/m
Safe working load according to IEC 61537 with support spacing 9.0 m-N/m
Safe working load according to IEC 61537 with support spacing 10.0 m-N/m
Safe working load according to IEC 61537 with support spacing 11.0 m-N/m
Safe working load according to IEC 61537 with support spacing 3.0 m-N/m
Safe working load according to IEC 61537 with support spacing 7.0 m-N/m
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

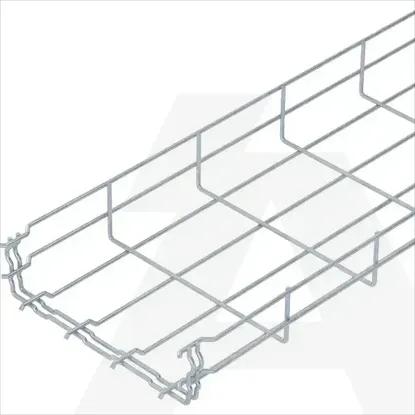

6001420 | GRM 55 200 FT
