Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated voltage230V
Voltage typeAC
Rated current20A
Rated insulation voltage Ui440V
Release characteristicC
Built-in depth69.5mm
Rated fault current0.03A
Leakage current typeA
Surge current capacity0.25kA
Current limiting class3
Connectable conductor cross section multi-wired1 - 25mm²
Width in number of modular spacings2
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-20kA
Pollution degree2
Number of protected poles1
Over voltage category3
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity according to EN 6100910kA
Degree of protection (IP)IP20
With interlocking deviceNo
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Connectable conductor cross section solid-core1 - 25mm²
Anti-nuisance tripping versionNo
Ambient temperature during operating-25 - 40°C
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

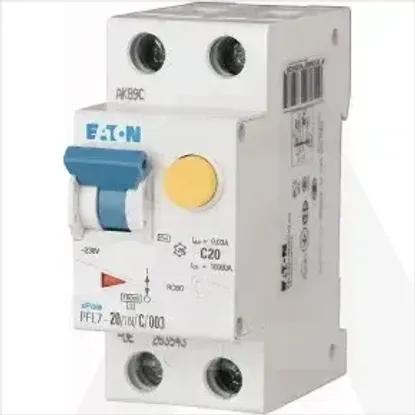

PFL7-20/1N/C/003-A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated voltage
230V
Voltage type
AC
Rated current
20A
Rated insulation voltage Ui
440V
Release characteristic
C
Built-in depth
69.5mm
Rated fault current
0.03A
Leakage current type
A
Surge current capacity
0.25kA
Current limiting class
3
Connectable conductor cross section multi-wired
1 .. 25mm²
Width in number of modular spacings
2
Frequency
50 Hz
Rated short-circuit breaking capacity according to IEC 60947-2
0kA
Pollution degree
2
Number of protected poles
1
Over voltage category
3
Suitable for flush-mounted installation
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity according to EN 61009
10kA
Degree of protection (IP)
IP20
With interlocking device
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Connectable conductor cross section solid-core
1 .. 25mm²
Anti-nuisance tripping version
Ambient temperature during operating
-25 .. 40°C
Number of poles (total)
2
