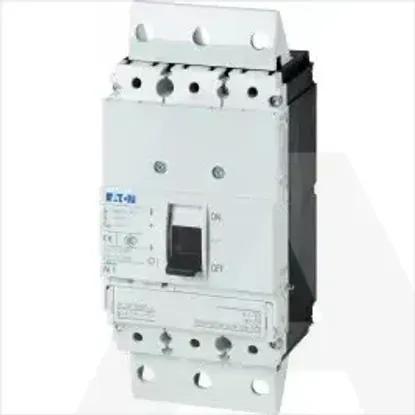

N1-63-SVE
Code: 1077731
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as main switchYes
Rated permanent current at AC-23, 400 V0A
Version as safety switchNo
Rated permanent current Iu63A
Rated operation power at AC-23, 400 V30kW
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Suitable for front mounting centreNo
Switching power at 400 V0kW
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Type of control elementRocker lever
Degree of protection (IP), front sideIP20
InterlockableYes
Width95mm
Version as emergency stop installationYes
Max. rated operation voltage Ue AC690V
Height201mm
Suitable for intermediate mountingYes
Number of poles3
Type of electrical connection of main circuitFrame clamp
With pre-assembled cablingNo
Colour control elementBlack
Motor drive optionalNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device plug-in technique
Number of switches1
Depth90mm
Rated permanent current at AC-21, 400 V0A
Version as reversing switchNo
Suitable for distribution board installationYes
Voltage release optionalYes
Rated short-time withstand current lcw2kA
