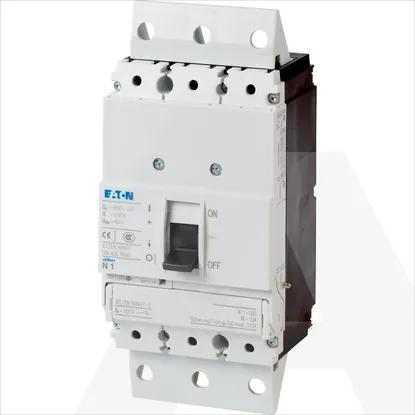

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of switches1
Conditioned rated short-circuit current Iq0kA
Width95mm
Depth90mm
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
InterlockableYes
Type of electrical connection of main circuitFrame clamp
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V55kW
Height201mm
Rated operation power at AC-3, 400 V0kW
Motor drive integratedNo
Type of control elementRocker lever
Rated short-time withstand current lcw2kA
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationYes
Number of auxiliary contacts as normally closed contact0
Voltage release optionalYes
Suitable for front mounting centreNo
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Colour control elementBlack
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Switching power at 400 V0kW
Device constructionBuilt-in device plug-in technique
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V0A
Motor drive optionalNo
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V0A
Rated permanent current Iu100A
Number of poles3
Max. rated operation voltage Ue AC690V
