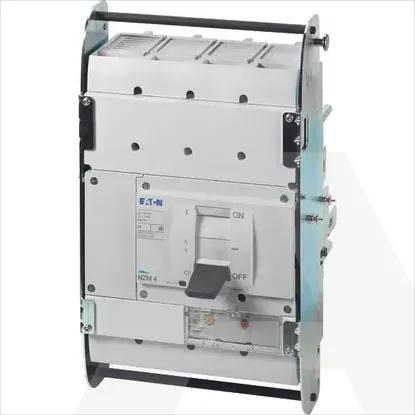

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP20
Rated permanent current Iu125A
Rated operation power at AC-3, 400 V0kW
Width95mm
Number of auxiliary contacts as change-over contact0
Height201mm
Number of poles3
Depth90mm
Conditioned rated short-circuit current Iq0kA
Version as main switchYes
Version as safety switchNo
Type of electrical connection of main circuitFrame clamp
InterlockableYes
Type of control elementRocker lever
Version as emergency stop installationYes
Motor drive integratedNo
Number of switches1
Suitable for distribution board installationYes
Colour control elementBlack
Motor drive optionalNo
Switching power at 400 V0kW
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw2kA
Rated permanent current at AC-23, 400 V0A
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device plug-in technique
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Voltage release optionalYes
Rated operation power at AC-23, 400 V55kW
Rated permanent current at AC-21, 400 V0A
With pre-assembled cablingNo
