Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Width185mm
Depth346mm
Height260mm
Degree of protection (IP)IP20
With thermal protectionNo
With integrated under voltage releaseNo
With integrated auxiliary switchNo
Rated operating voltage690 - 690V
Switch off techniqueMagnetic
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-3, 230 V160kW
Adjustment range undelayed short-circuit release6 - 10A
Phase failure sensitiveNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Type of control elementRocker lever
Rated operation power at AC-3, 400 V250kW
Rated permanent current Iu500A
Number of poles3
Overload release current setting0 - 0A
Rated short-circuit breaking capacity lcu at 400 V, AC35kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

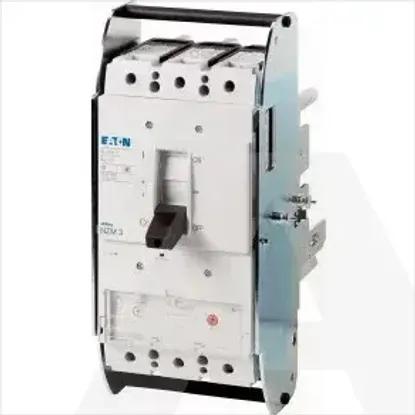

NZMN3-S500-AVE
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
185mm
Depth
346mm
Height
260mm
Degree of protection (IP)
IP20
With thermal protection
With integrated under voltage release
With integrated auxiliary switch
Rated operating voltage
690 .. 690V
Switch off technique
Magnetic
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 230 V
160kW
Adjustment range undelayed short-circuit release
6 .. 10A
Phase failure sensitive
Device construction
Built-in device slide-in technique (withdrawable)
Type of control element
Rocker lever
Rated operation power at AC-3, 400 V
250kW
Rated permanent current Iu
500A
Number of poles
3
Overload release current setting
0 .. 0A
Rated short-circuit breaking capacity lcu at 400 V, AC
35kA
