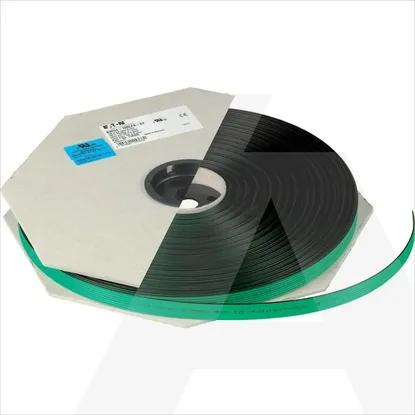

SWD4-100LF8-24
Code: 1078295
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Conductor surfaceTinned
Diameter conductor1.35mm
Conductor materialOther
Cable typeOther
AWG size24
Conductor categoryClass 2 = stranded
Specification core insulationOther
Number of stranding elements0
DuplexNo
Stranding elementPairs
StrandingBundle
Core identificationColour
Screen over stranding elementFoil
Material core insulationPolyvinyl chloride (PVC)
Radial water blocking cableNo
Core identification according to HD 308 S2No
Approved type of underground installationOther
Suitable for underground installationNo
Number of cores8
Material outer sheathPolyvinyl chloride (PVC)
Armouring/reinforcementNone
Specification material outer sheathOther
Number of sheath layers0
Protective sheathOther
Material reinforcementOther
Flame retardant according to IEC 60332-3-23 (Cat B)No
Cable geometryFlat
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Nominal cross section conductor0.23mm²
Flame retardant according to IEC 60332-3-22 (Cat A)No
Colour outer sheathGreen
Longitudinal water blocking cableYes
Smoke development class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Reaction-to-fire class according to EN 13501-6None
Circuit integrity according to IEC 60331-23No
Flame retardant according to IEC 60332-1-2No
Halogen free according to IEC 60754-3No
Min. permitted bending radius, moving application with forced guidance15mm
Halogen free (according to IEC 60754-2)No
Oil resistant (according to EN 60811-404)No
Euro class flaming droplets/particles according to EN 13501-6None
Min. permitted bending radius, stationary application/permanent installation7.5mm
Min. permitted bending radius, moving application/free movement15mm
Low smoke (according to IEC 61034-2)No
Outer diameter approx.17.5mm
Screen over strandingNone
Halogen free according to IEC 60754-1No
Permitted cable outer temperature after assembling without vibration-30 - 105°C
Permitted cable outer temperature during assembling/handling-10 - 105°C
CategoryOther
UV resistantYes
Suitable as telephone cableNo
Certified for shipboard applicationNo
Suitable as computer data cableNo
Suitable as signalling cableYes
NVP value66.7%
Suitable for use as security alarm cableNo
With rip cordNo
Characteristic impedance100Ohm
Cable width approx.17.5mm
Drain wireNo
Max. tensile strength during installation0.0115kN
Nominal voltage U24V
Compatible with Grade3TV according to XP-C 90-483No
Compatible with Grade2TV according to XP-C 90-483No
With rodent protectionNo
Cable height approx.40mm
