Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width108mm
Depth72mm
Suitable for safety functionsYes
Switching current8A
Number of digital inputs14
With time switch clockYes
With displayNo
Power consumption4W
ExpandableYes
Height90mm
Supporting protocol for other bus systemsYes
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs4
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
With optical interfaceNo
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Number of HW-interfaces other3
Number of HW-interfaces RS-4850
Number of analogue inputs0
Supporting protocol for LONNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces RS-2321
Number of HW-interfaces USB0
Supporting protocol for ASINo
Number of digital outputs5
Supporting protocol for CANNo
Voltage type of supply voltageDC
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for KNXNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Supporting protocol for TCP/IPNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for INTERBUS-SafetyNo
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Radio standard BluetoothNo
Number of HW-interfaces Wireless0
Rail mounting possibleYes
Explosion safety category for gasNone
Expansion deviceNo
Front built-in possibleNo
Rack-assembly possibleNo
Supporting protocol for DeviceNet SafetyNo
With relay outputYes
Degree of protection (IP)IP20
Wall mounting/direct mountingYes
RedundancyYes
Number of interfaces PROFINET0
Explosion safety category for dustNone
Supporting protocol for SERCOSNo
Radio standard Wi-Fi 802.11No
Basic deviceYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1Level e
IO link masterNo
Supporting protocol for SafetyBUS pNo
Supply voltage AC 50 Hz0 - 0V
Radio standard GSMNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC20.4 - 28.8V
Supporting protocol for PROFIsafeNo
Radio standard GPRSNo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class INo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
SIL according to IEC 615083
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 1No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

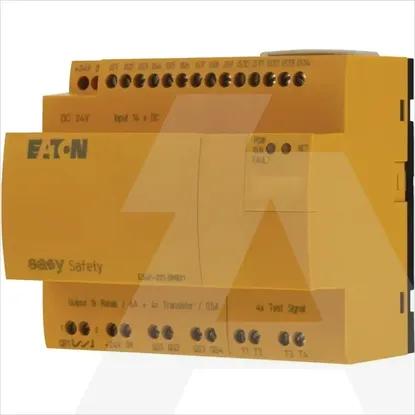

ES4P-221-DMXX1
