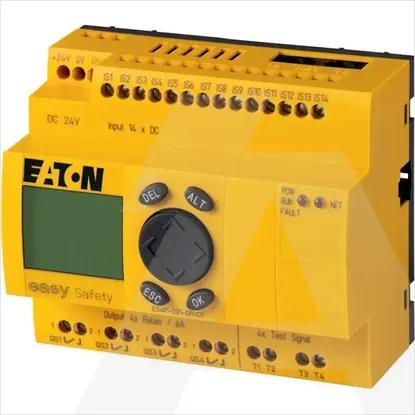

Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width108mm
Height90mm
Depth72mm
ExpandableYes
Power consumption6W
Switching current8A
With time switch clockYes
With displayYes
Number of HW-interfaces RS-4850
Number of digital inputs14
Number of HW-interfaces RS-4220
Number of analogue outputs4
Number of analogue inputs0
Number of digital outputs4
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Voltage type of supply voltageDC
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other3
Supporting protocol for CANNo
With optical interfaceNo
Number of HW-interfaces USB0
Supporting protocol for ASINo
Number of HW-interfaces RS-2321
Suitable for safety functionsYes
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ModbusNo
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUS-SafetyNo
Explosion safety category for dustNone
Rack-assembly possibleNo
Wall mounting/direct mountingYes
Explosion safety category for gasNone
RedundancyYes
Rail mounting possibleYes
With relay outputYes
Supporting protocol for SUCONETNo
Appendant operation agent (Ex ib)No
Performance level according to EN ISO 13849-1Level e
Appendant operation agent (Ex ia)No
Radio standard BluetoothNo
Number of interfaces PROFINET0
Degree of protection (IP)IP20
Number of HW-interfaces Wireless0
Supporting protocol for AS-Interface Safety at WorkNo
Expansion deviceNo
Front built-in possibleNo
Supporting protocol for SERCOSNo
Basic deviceYes
Radio standard Wi-Fi 802.11No
IO link masterNo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for PROFINET IONo
Certified for UL hazardous location class INo
Supporting protocol for EtherNet/IPNo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Radio standard GPRSNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for EtherCATNo
Radio standard UMTSNo
Supporting protocol for DeviceNet SafetyNo
Certified for UL hazardous location class IINo
Supporting protocol for PROFINET CBANo
Supply voltage DC20.4 - 28.8V
SIL according to IEC 615083
Radio standard GSMNo
Certified for UL hazardous location division 1No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
