Details
- •Cable carrying systems

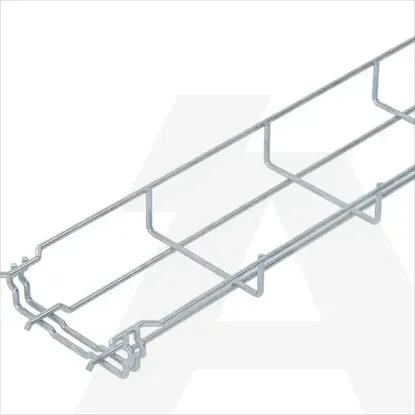

- •Mesh cable tray
- •1 M
- •OBO
Technical specifications
Surface protectionHot-dip galvanized
Type of connectorSnapper mounting
Weight0.5kg/m
ModelIntegrated connector
Height35mm
RAL-number-
Width100mm
Length3000mm
Integrated partitionNone
MaterialSteel
Operating temperature- - -°C
Useful cross section3500mm²
Profile shapeU-shape
Working length-mm
Diameter longitudinal wire3.9mm
Load test type according to IEC 61537Type II
Suitable for circuit integrityNo
Safe working load according to IEC 61537 with support spacing 0.5 m-N/m
Possible support spacing1 - 2m
Safe working load according to IEC 61537 with support spacing 1.0 m250N/m
Safe working load according to IEC 61537 with support spacing 1.5 m110N/m
Safe working load according to IEC 61537 with support spacing 2.5 m-N/m
Safe working load according to IEC 61537 with support spacing 2.0 m100N/m
Safe working load according to IEC 61537 with support spacing 6.0 m-N/m
Safe working load according to IEC 61537 with support spacing 4.0 m-N/m
Safe working load according to IEC 61537 with support spacing 3.0 m-N/m
Safe working load according to IEC 61537 with support spacing 5.0 m-N/m
Safe working load according to IEC 61537 with support spacing 7.0 m-N/m
Safe working load according to IEC 61537 with support spacing 8.0 m-N/m
Safe working load according to IEC 61537 with support spacing 9.0 m-N/m
Diameter transverse wire3.9mm
Safe working load according to IEC 61537 with support spacing 10.0 m-N/m
Safe working load according to IEC 61537 with support spacing 11.0 m-N/m
Safe working load according to IEC 61537 with support spacing 12.0 m-N/m
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
6000071 | GRM 35 100 FT
