Aleta.hr

Details

  • •Cable carrying systems
  • •Mesh cable tray
  • •1 M
  • •OBO

Technical specifications

Type of connectorSnapper mounting
RAL-number-
ModelIntegrated connector
Suitable for circuit integrityYes
Material qualityStainless steel 316 (1.4401)
Diameter longitudinal wire4.8mm
Useful cross section17500mm²
Profile shapeU-shape
Operating temperature- - -°C
Possible support spacing1 - 2.5m
Integrated partitionNone
Weight2.35kg/m
Working length-mm
Load test type according to IEC 61537Type II
Safe working load according to IEC 61537 with support spacing 0.5 m-N/m
Safe working load according to IEC 61537 with support spacing 4.0 m-N/m
Safe working load according to IEC 61537 with support spacing 1.0 m900N/m
Safe working load according to IEC 61537 with support spacing 6.0 m-N/m
Safe working load according to IEC 61537 with support spacing 7.0 m-N/m
Safe working load according to IEC 61537 with support spacing 8.0 m-N/m
Safe working load according to IEC 61537 with support spacing 3.0 m-N/m
Safe working load according to IEC 61537 with support spacing 5.0 m-N/m
Safe working load according to IEC 61537 with support spacing 2.5 m250N/m
Safe working load according to IEC 61537 with support spacing 2.0 m300N/m
Safe working load according to IEC 61537 with support spacing 1.5 m600N/m
Safe working load according to IEC 61537 with support spacing 10.0 m-N/m
Safe working load according to IEC 61537 with support spacing 11.0 m-N/m
Safe working load according to IEC 61537 with support spacing 12.0 m-N/m
Diameter transverse wire4.8mm
Safe working load according to IEC 61537 with support spacing 9.0 m-N/m
Width400mm
Height55mm
Surface protectionUntreated
Length3000mm
MaterialStainless steel

Related products

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

6001095 | GRM 55 400 A4

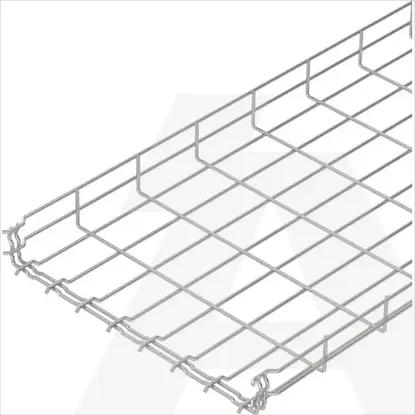

Main Product Image
