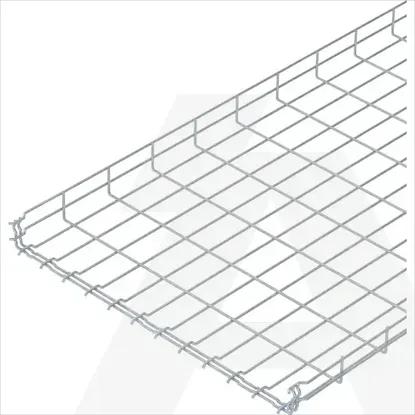

6001436 | GRM 55 600 FT
Code: 1081940
Details
- •Cable carrying systems
- •Mesh cable tray
- •1 M
- •OBO
Technical specifications
Working length-mm
RAL-number-
Operating temperature- - -°C
Safe working load according to IEC 61537 with support spacing 0.5 m-N/m
Safe working load according to IEC 61537 with support spacing 3.0 m-N/m
Safe working load according to IEC 61537 with support spacing 5.0 m-N/m
Safe working load according to IEC 61537 with support spacing 6.0 m-N/m
Safe working load according to IEC 61537 with support spacing 4.0 m-N/m
Safe working load according to IEC 61537 with support spacing 7.0 m-N/m
Safe working load according to IEC 61537 with support spacing 10.0 m-N/m
Safe working load according to IEC 61537 with support spacing 11.0 m-N/m
Safe working load according to IEC 61537 with support spacing 9.0 m-N/m
Safe working load according to IEC 61537 with support spacing 12.0 m-N/m
Safe working load according to IEC 61537 with support spacing 8.0 m-N/m
Profile shapeU-shape
Height55mm
Width600mm
Length3000mm
Diameter longitudinal wire4.8mm
Integrated partitionNone
Useful cross section26500mm²
Load test type according to IEC 61537Type II
Suitable for circuit integrityNo
MaterialSteel
Diameter transverse wire4.8mm
Weight3.31kg/m
Safe working load according to IEC 61537 with support spacing 2.5 m250N/m
Surface protectionHot-dip galvanized
Safe working load according to IEC 61537 with support spacing 1.5 m600N/m
Safe working load according to IEC 61537 with support spacing 1.0 m900N/m
Possible support spacing1 - 2.5m
Safe working load according to IEC 61537 with support spacing 2.0 m300N/m
ModelIntegrated connector
Type of connectorSnapper mounting
