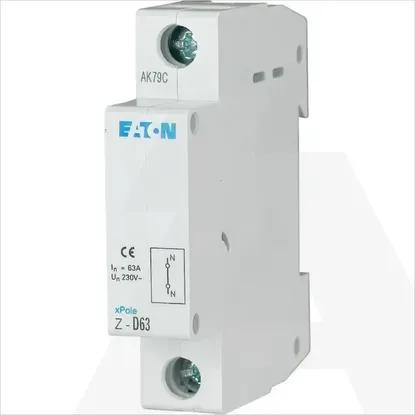

Z-D63/P
Code: 1089119
ManufacturerEaton
Catalog number248268
TypeZ-D63/P
CategoryFeed-through terminal block
EAN code4015082482688
Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •EATON
Technical specifications
Number of levels1
Type of electrical connection 2Other
Closing plate requiredNo
Width175mm
Number of clamp positions per level1
Type of electrical connection 1Screw connection
Operating temperature-25 - 40°C
Internally connected stagesNo
Inflammability class of insulation material according to with UL94Other
Mounting methodDIN rail (top hat rail) 35 mm
Depth80mm
Height80mm
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve0 - 0mm²
Connectable conductor cross section fine-strand with cable end sleeve0 - 0mm²
Material insulation bodyOther
Connectable conductor cross section multi-wired1 - 25mm²
ColourGrey
Rated voltage230V
Connectable conductor cross section solid-core1 - 25mm²
Rated current In63A
