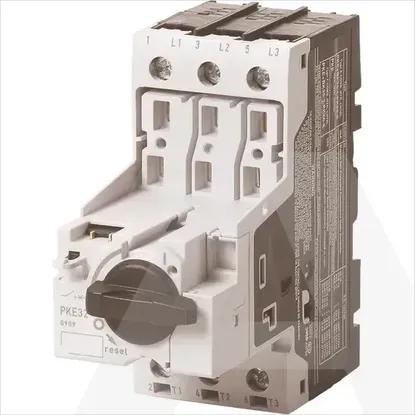

Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Switch off techniqueElectronic
Number of poles3
Rated operation power at AC-3, 400 V0kW
Width45mm
With integrated under voltage releaseNo
Height102.5mm
Type of control elementTurn button
Device constructionBuilt-in device fixed built-in technique
Depth101mm
Degree of protection (IP)IP20
Rated short-circuit breaking capacity lcu at 400 V, AC0kA
With integrated auxiliary switchNo
Type of electrical connection of main circuitScrew connection
Overload release current setting8 - 32A
Adjustment range undelayed short-circuit release8 - 32A
Rated permanent current Iu32A
With thermal protectionNo
Phase failure sensitiveNo
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V0kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
PKE32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Switch off technique
Electronic
Number of poles
3
Rated operation power at AC-3, 400 V
0kW
Width
45mm
With integrated under voltage release
Height
102.5mm
Type of control element
Turn button
Device construction
Built-in device fixed built-in technique
Depth
101mm
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity lcu at 400 V, AC
0kA
With integrated auxiliary switch
Type of electrical connection of main circuit
Screw connection
Overload release current setting
8 .. 32A
Adjustment range undelayed short-circuit release
8 .. 32A
Rated permanent current Iu
32A
With thermal protection
Phase failure sensitive
Rated operating voltage
690 .. 690V
Rated operation power at AC-3, 230 V
0kW
