Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Height102.5mm
Rated operation power at AC-3, 400 V15kW
With integrated auxiliary switchNo
Depth101mm
Width45mm
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Overload release current setting32 - 32A
Number of poles3
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Adjustment range undelayed short-circuit release496 - 496A
Type of control elementTurn button
Rated operation power at AC-3, 230 V7.5kW
Switch off techniqueElectronic
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
Phase failure sensitiveNo
With thermal protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

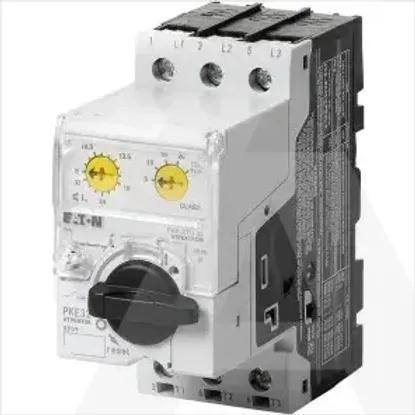

PKE32/XTU-32
