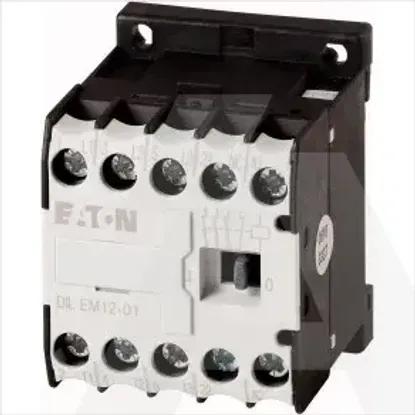

DILEM12-01(110V50HZ,120V60HZ)
Code: 1092540
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ110 - 110V
Number of normally open contacts as main contact3
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ120 - 120V
Operating voltage at AC 60 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Number of normally closed contacts as main contact0
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-3, 400 V12A
Rated operation power at AC-4, 400 V3kW
Rated operation power at AC-3, 400 V5.5kW
Rated operation current Ie at AC-4, 400 V6.6A
Rated operation power NEMA3.7kW
Width45mm
Number of auxiliary contacts as normally closed contact1
Modular versionNo
Number of auxiliary contacts as normally open contact0
Depth52mm
Height58mm
