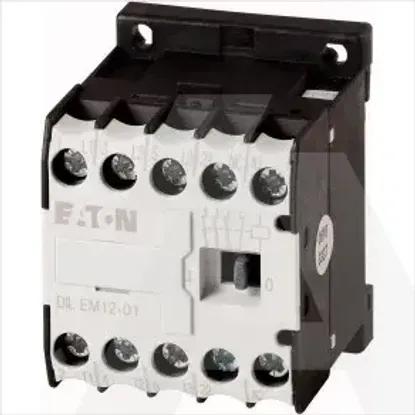

DILEM12-01-G(24VDC)
Code: 1092545
ManufacturerEaton
Catalog number127137
TypeDILEM12-01-G(24VDC)
CategoryPower contactor, AC switching
EAN code4015081246724
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Modular versionNo
Depth54mm
Number of normally closed contacts as main contact0
Width45mm
Height58mm
Rated operation current Ie at AC-1, 400 V22A
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingDC
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC24 - 24V
Rated operation current Ie at AC-4, 400 V6.6A
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA3.7kW
Rated operation power at AC-4, 400 V3kW
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V12A
Rated control supply voltage Us at AC 50HZ0 - 0V
