Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width515mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact2
Depth252mm
Rated operation current Ie at AC-3, 400 V0A
Operating voltage at AC 50 Hz230 - 250V
Number of normally closed contacts as main contact0
Operating voltage at AC 60 Hz230 - 250V
Number of normally open contacts as main contact3
Rated operation current Ie at AC-1, 400 V2600A
Height462mm
Rated control supply voltage Us at DC230 - 250V
Voltage type for actuatingAC/DC
Modular versionNo
Rated control supply voltage Us at AC 50HZ230 - 250V
Type of electrical connection of main circuitRail connection
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at AC 60HZ230 - 250V
Rated operation current Ie at AC-4, 400 V0A
Rated operation power at AC-4, 400 V0kW
Rated operation power NEMA0kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

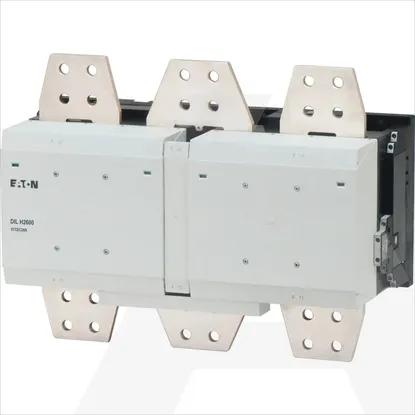

DILH2600/22(RAW250)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
515mm
Rated operation power at AC-3, 400 V
0kW
Number of auxiliary contacts as normally open contact
2
Depth
252mm
Rated operation current Ie at AC-3, 400 V
0A
Operating voltage at AC 50 Hz
230 .. 250V
Number of normally closed contacts as main contact
0
Operating voltage at AC 60 Hz
230 .. 250V
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-1, 400 V
2600A
Height
462mm
Rated control supply voltage Us at DC
230 .. 250V
Voltage type for actuating
AC/DC
Modular version
Rated control supply voltage Us at AC 50HZ
230 .. 250V
Type of electrical connection of main circuit
Rail connection
Number of auxiliary contacts as normally closed contact
2
Rated control supply voltage Us at AC 60HZ
230 .. 250V
Rated operation current Ie at AC-4, 400 V
0A
Rated operation power at AC-4, 400 V
0kW
Rated operation power NEMA
0kW
