Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation power at AC-3, 400 V90kW
Width140mm
Modular versionNo
Height190mm
Depth158mm
Rated operation current Ie at AC-3, 400 V185A
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-1, 400 V337A
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 60HZ190 - 240V
Type of electrical connection of main circuitRail connection
Rated operation current Ie at AC-4, 400 V136A
Rated control supply voltage Us at AC 50HZ190 - 240V
Voltage type for actuatingAC
Rated operation power NEMA93kW
Operating voltage at AC 60 Hz190 - 240V
Operating voltage at AC 50 Hz190 - 240V
Rated operation power at AC-4, 400 V75kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

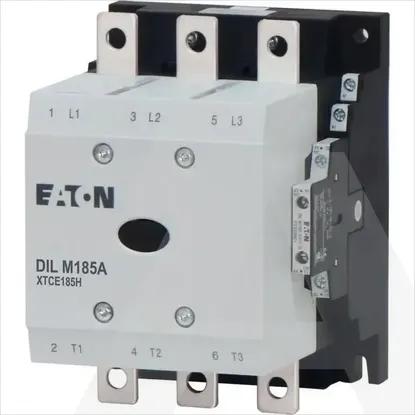

DILM185A/22(RAC240)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated operation power at AC-3, 400 V
90kW
Width
140mm
Modular version
Height
190mm
Depth
158mm
Rated operation current Ie at AC-3, 400 V
185A
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-1, 400 V
337A
Number of auxiliary contacts as normally open contact
2
Rated control supply voltage Us at DC
0 .. 0V
Rated control supply voltage Us at AC 60HZ
190 .. 240V
Type of electrical connection of main circuit
Rail connection
Rated operation current Ie at AC-4, 400 V
136A
Rated control supply voltage Us at AC 50HZ
190 .. 240V
Voltage type for actuating
AC
Rated operation power NEMA
93kW
Operating voltage at AC 60 Hz
190 .. 240V
Operating voltage at AC 50 Hz
190 .. 240V
Rated operation power at AC-4, 400 V
75kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
