Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width140mm
Height190mm
Modular versionNo
Depth158mm
Rated operation power at AC-3, 400 V110kW
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electrical connection of main circuitRail connection
Rated operation power NEMA111kW
Number of normally closed contacts as main contact0
Rated operation power at AC-4, 400 V90kW
Rated control supply voltage Us at AC 50HZ0 - 0V
Voltage type for actuatingDC
Rated operation current Ie at AC-1, 400 V356A
Rated operation current Ie at AC-4, 400 V164A
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at DC24 - 27V
Rated operation current Ie at AC-3, 400 V225A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

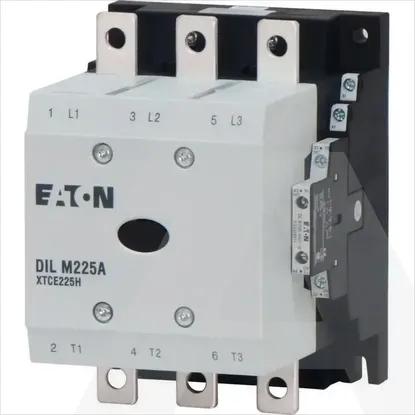

DILM225A/22(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Width
140mm
Height
190mm
Modular version
Depth
158mm
Rated operation power at AC-3, 400 V
110kW
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
2
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Type of electrical connection of main circuit
Rail connection
Rated operation power NEMA
111kW
Number of normally closed contacts as main contact
0
Rated operation power at AC-4, 400 V
90kW
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
356A
Rated operation current Ie at AC-4, 400 V
164A
Number of auxiliary contacts as normally closed contact
2
Rated control supply voltage Us at DC
24 .. 27V
Rated operation current Ie at AC-3, 400 V
225A
