Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact2
Width140mm
Modular versionNo
Rated operation current Ie at AC-3, 400 V225A
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V356A
Depth158mm
Rated operation power at AC-3, 400 V110kW
Height190mm
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Type of electrical connection of main circuitRail connection
Rated operation current Ie at AC-4, 400 V164A
Rated operation power NEMA111kW
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation power at AC-4, 400 V90kW
Rated control supply voltage Us at DC48 - 60V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

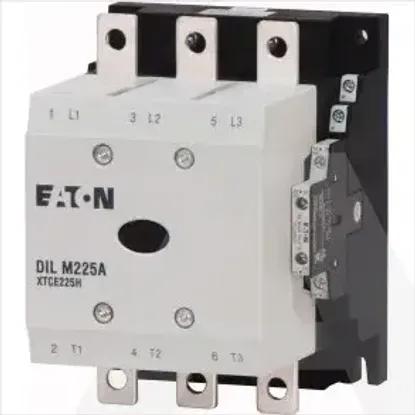

DILM225A/22(RDC60)
