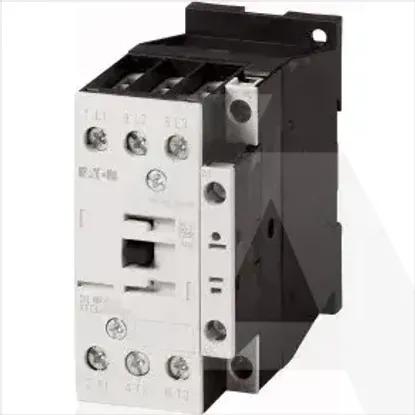

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Depth97mm
Height85mm
Rated operation power at AC-3, 400 V7.5kW
Modular versionNo
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-3, 400 V18A
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact1
Rated control supply voltage Us at AC 50HZ190 - 240V
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V35A
Rated control supply voltage Us at AC 60HZ190 - 240V
Rated operation power at AC-4, 400 V4.5kW
Operating voltage at AC 60 Hz230 - 690V
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V10A
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Rated operation power NEMA7.4kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILMF17-01(RAC240)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
45mm
Depth
97mm
Height
85mm
Rated operation power at AC-3, 400 V
7.5kW
Modular version
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V
18A
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Rated control supply voltage Us at AC 50HZ
190 .. 240V
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
35A
Rated control supply voltage Us at AC 60HZ
190 .. 240V
Rated operation power at AC-4, 400 V
4.5kW
Operating voltage at AC 60 Hz
230 .. 690V
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation current Ie at AC-4, 400 V
10A
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at DC
0 .. 0V
Voltage type for actuating
AC
Rated operation power NEMA
7.4kW
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
