Details
- •Low-voltage industrial components

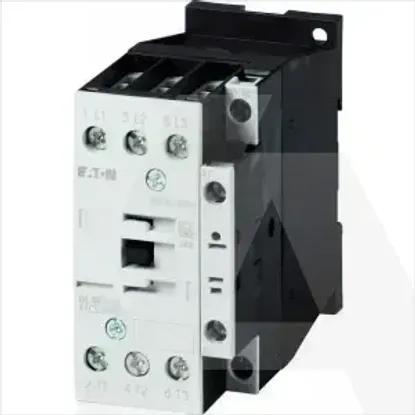

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Height85mm
Depth97mm
Operating voltage at AC 50 Hz230 - 690V
Rated control supply voltage Us at DC0 - 0V
Rated operation power NEMA14.9kW
Rated operation current Ie at AC-3, 400 V32A
Number of auxiliary contacts as normally closed contact1
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact0
Rated control supply voltage Us at AC 50HZ190 - 240V
Modular versionNo
Operating voltage at AC 60 Hz230 - 690V
Voltage type for actuatingAC
Rated operation power at AC-4, 400 V7kW
Type of electrical connection of main circuitScrew connection
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V45A
Rated operation current Ie at AC-4, 400 V15A
Rated operation power at AC-3, 400 V15kW
Rated control supply voltage Us at AC 60HZ190 - 240V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILMF32-01(RAC240)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
45mm
Height
85mm
Depth
97mm
Operating voltage at AC 50 Hz
230 .. 690V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation power NEMA
14.9kW
Rated operation current Ie at AC-3, 400 V
32A
Number of auxiliary contacts as normally closed contact
1
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
0
Rated control supply voltage Us at AC 50HZ
190 .. 240V
Modular version
Operating voltage at AC 60 Hz
230 .. 690V
Voltage type for actuating
AC
Rated operation power at AC-4, 400 V
7kW
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
45A
Rated operation current Ie at AC-4, 400 V
15A
Rated operation power at AC-3, 400 V
15kW
Rated control supply voltage Us at AC 60HZ
190 .. 240V
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
