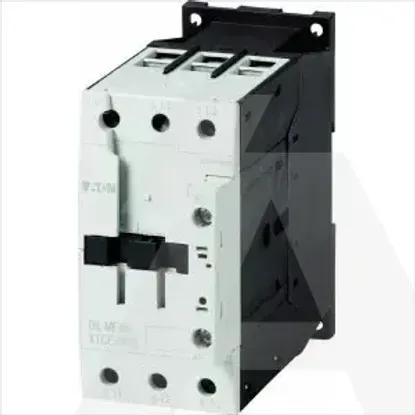

DILMF50(RAC24)
Code: 1092690
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V70A
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz230 - 690V
Rated control supply voltage Us at AC 50HZ24 - 24V
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at AC 60HZ24 - 24V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-3, 400 V50A
Rated operation current Ie at AC-4, 400 V21A
Rated operation power NEMA29.8kW
Rated operation power at AC-4, 400 V10kW
Width55mm
Height115mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Modular versionNo
Depth132.1mm
