Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height170mm
Number of auxiliary contacts as normally open contact0
Width90mm
Rated control supply voltage Us at DC0 - 0V
Modular versionNo
Depth160mm
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V80A
Rated control supply voltage Us at AC 60HZ24 - 24V
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V37kW
Operating voltage at AC 60 Hz230 - 690V
Number of normally open contacts as main contact3
Rated operation current Ie at AC-1, 400 V90A
Rated operation current Ie at AC-4, 400 V40A
Operating voltage at AC 50 Hz230 - 690V
Rated control supply voltage Us at AC 50HZ24 - 24V
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-4, 400 V20kW
Voltage type for actuatingAC
Rated operation power NEMA44.7kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

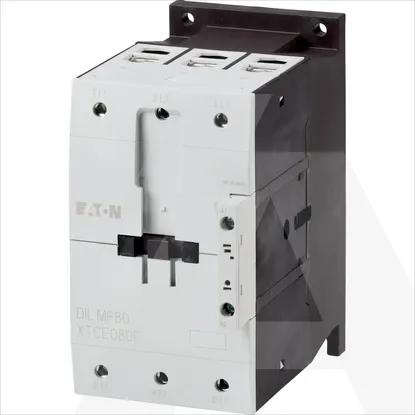

DILMF80(RAC24)
