Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height85mm
Width45mm
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-1, 400 V20A
Depth97mm
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 50HZ24 - 24V
Rated control supply voltage Us at AC 60HZ24 - 24V
Operating voltage at AC 50 Hz230 - 690V
Rated operation power at AC-4, 400 V2.2kW
Voltage type for actuatingAC
Rated operation current Ie at AC-4, 400 V5A
Operating voltage at AC 60 Hz230 - 690V
Rated operation power NEMA7.4kW
Number of normally open contacts as main contact3
Modular versionNo
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V3kW
Rated operation current Ie at AC-3, 400 V7A
Type of electrical connection of main circuitScrew connection
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

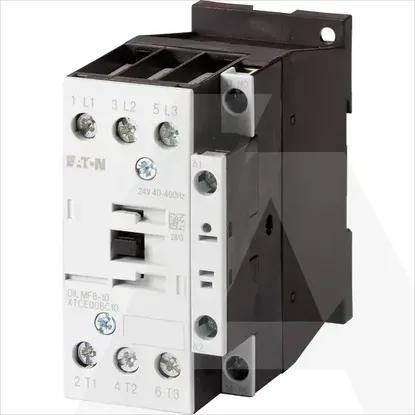

DILMF8-10(RAC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
85mm
Width
45mm
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
20A
Depth
97mm
Rated control supply voltage Us at DC
0 .. 0V
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation power at AC-4, 400 V
2.2kW
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
5A
Operating voltage at AC 60 Hz
230 .. 690V
Rated operation power NEMA
7.4kW
Number of normally open contacts as main contact
3
Modular version
Number of auxiliary contacts as normally open contact
1
Rated operation power at AC-3, 400 V
3kW
Rated operation current Ie at AC-3, 400 V
7A
Type of electrical connection of main circuit
Screw connection
